Hermetic Sealed Connectors Main Applications Guide

In demanding environments, reliability is everything. Specialised interconnects ensure that vital systems function without fail. These components use advanced sealing technologies to protect against harsh conditions.

They prevent gas and moisture from entering sensitive equipment. This is critical in aerospace, military, and vacuum systems. From submarines to satellites, their role is indispensable.

These products also serve in medical devices and oil exploration. Standards like MIL-DTL-38999 Series and NASA specifications ensure top performance. Leak rates as low as 1×10-7 guarantee integrity under pressure.

This guide helps engineers and buyers choose the right solutions. It covers applications, specs, and innovations for informed decisions.

Key Takeaways

• Specialised interconnects are designed for extreme environments and high reliability.
• They prevent gas and moisture ingress, crucial for aerospace and military use.
• Applications range from submarines and satellites to medical and industrial equipment.
• Key standards include MIL-DTL-38999 Series and NASA specifications for safety.
• Leak rates as low as 1×10-7 ensure performance in vacuum and high-pressure conditions.
• Operating temperatures can span from -115°C to 200°C, showing wide durability.
• Innovations like lightweight sealing improve electrical performance and reduce weight.

Understanding Hermetic Sealed Connectors: A Buyer’s Primer

In scenarios where even minute gas transfer could compromise system integrity, precision-engineered interfaces provide essential protection. These specialised components create absolute barriers against environmental elements.

The hermetic sealed connectors prevent both ingress and egress of gases and fluids. They maintain controlled environments in sensitive equipment. This capability is crucial across multiple industries.

“The integrity of sealed systems depends on boundary components that maintain environmental isolation without failure.”

Advanced sealing technologies form the core of these products. Glass-to-metal bonding and epoxy encapsulation create permanent barriers. These methods ensure long-term reliability in challenging conditions.

Rigorous testing validates performance under extreme circumstances. Helium leak detection methods measure permeability rates. Standards require measurements below 1×10⁻⁸ mbar·l/s for critical applications.

Environmental protection represents a primary function. Systems face moisture intrusion, pressure variations, and corrosive media. Robust sealing prevents degradation from these elements.

Material selection ensures durability in harsh operating conditions. Stainless steel, brass, and aluminium provide mechanical strength. These materials resist corrosion and maintain integrity.

Industry standards guide design and implementation requirements. MIL-SPEC certifications and IEC standards establish performance benchmarks. Compliance ensures interoperability and reliability.

Vacuum environments demand exceptional sealing characteristics. Chambers require minimal gas permeability to maintain vacuum integrity. Even microscopic leaks can compromise system performance.

Technological evolution has improved these components significantly. Traditional glass-metal seals now complement advanced polymer encapsulants. Innovations like lightweight compounds enhance electrical performance while reducing mass.

Buyers should understand key terminology before selection. Concepts like permeability rates and environmental resistance impact suitability. Proper understanding ensures appropriate component selection.

These specialised interfaces outperform standard variants in critical scenarios. They provide essential protection where failure is not an option. The investment ensures long-term system reliability.

Sealing Technology	Maximum Temperature	Leak Rate Performance	Primary Applications
Glass-to-Metal Seal	200°C	1×10⁻⁸ mbar·l/s	Aerospace, Military
Epoxy Encapsulation	150°C	1×10⁻⁷ mbar·l/s	Medical, Industrial
Polymer Composite	180°C	5×10⁻⁸ mbar·l/s	Electronics, Communications
Metallic Compression	250°C	1×10⁻⁹ mbar·l/s	High Vacuum Systems

Selection considerations include operational environment and performance requirements. Temperature ranges, pressure differentials, and media exposure influence choices. Proper matching ensures optimal system performance.

Understanding these fundamentals helps buyers make informed decisions. The right choice balances performance requirements with practical considerations. This knowledge leads to successful implementation in critical applications.

Key Applications for Hermetic Sealed Connectors

Precision-engineered interfaces ensure uninterrupted operation where conventional components would fail. These specialised products protect sensitive electronics across diverse challenging environments.

Military and aerospace systems rely on robust environmental protection. Unmanned aerial vehicles face severe weather conditions and pressure extremes at high altitudes. These conditions demand components that maintain perfect isolation.

Submarine systems require exceptional moisture resistance in underwater applications. Satellite equipment must withstand vacuum conditions in orbital environments. Both applications depend on reliable barrier technologies.

Industrial settings present unique challenges for electronic components. Oil and gas logging equipment operates in underground environments with potential fluid ingress. Proper sealing prevents system failures in these critical operations.

Medical devices demand sterile, moisture-free connections for patient safety. Diagnostic equipment and surgical tools require absolute reliability. Environmental protection ensures consistent performance in healthcare settings.

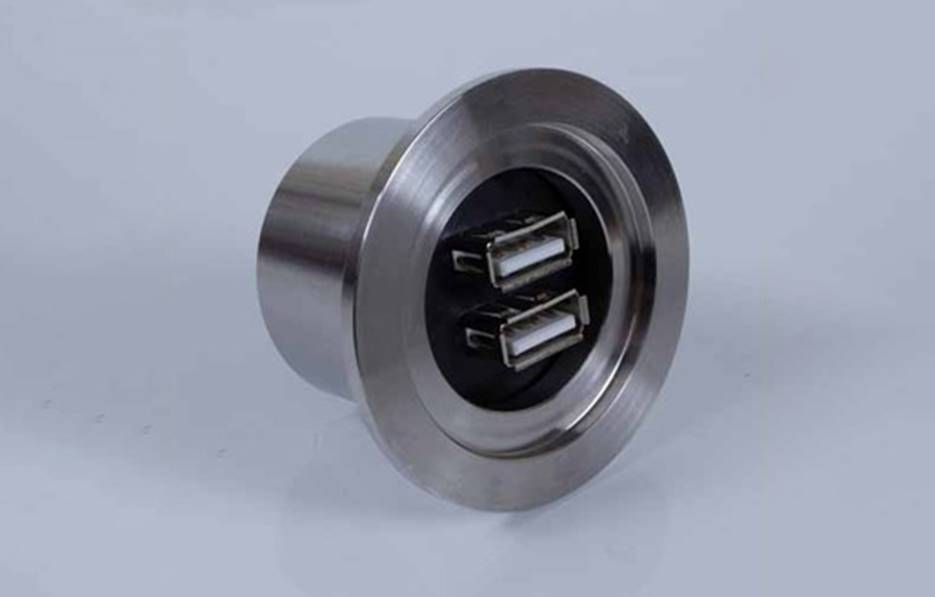

Vacuum chambers represent another crucial application area. Research facilities and manufacturing plants maintain high vacuum levels for various processes. Specialised interfaces prevent gas leakage that would compromise chamber integrity.

Sensor and surveillance equipment benefits from advanced protection technologies. Moisture prevention maintains measurement accuracy and prevents electronics degradation. This is vital for data reliability in monitoring systems.

Commercial aircraft systems face rapid pressure and temperature changes. Laboratory equipment operates across diverse environmental conditions. Versatile sealing solutions adapt to these varying requirements.

“In critical systems, the right interface choice determines overall reliability and performance outcomes.”

Industry Applications Expert

Specific product examples demonstrate real-world implementation. Geophysical and offshore applications require exceptional durability. Harsh marine conditions test component integrity constantly. Rugged construction combined with effective sealing ensures long-term operation.

Application Area	Primary Challenges	Key Requirements	Performance Standards
Military Aerospace	Pressure extremes, altitude changes	High mechanical strength, temperature stability	MIL-SPEC certifications
Submarine Systems	Moisture intrusion, corrosion	Complete moisture barrier, corrosion resistance	Naval engineering standards
Medical Devices	Sterility requirements, reliability	Biocompatible materials, zero leakage	Medical device regulations
Vacuum Chambers	Gas permeability, outgassing	Ultra-low leak rates, clean materials	Vacuum performance metrics
Oil & Gas Equipment	Harsh chemicals, pressure differentials	Chemical resistance, high pressure tolerance	Industry-specific certifications

The applicability extends from ATEX hazardous environments to consumer electronics testing. High-reliability requirements span multiple industries and operational conditions. This broad utility demonstrates the fundamental importance of proper environmental protection.

Choosing the right solution depends on understanding specific application demands. Each environment presents unique challenges that influence component selection. Proper matching ensures optimal performance and long-term reliability.

Essential Performance Specifications to Evaluate

When selecting environmental barrier components, technical specifications determine success in challenging operations. These metrics define how products perform under extreme conditions.

Leak rate stands as the most critical measurement for isolation integrity. Values like 1×10⁻⁷ mbar·l/s indicate superior barrier performance. This specification proves vital for vacuum systems and harsh environments.

“Leak rate specifications separate adequate components from exceptional ones in critical applications.”

Quality Assurance Director

Temperature range capability ensures functionality across diverse operating conditions. Components must perform from -115°C to 200°C without degradation. This breadth covers arctic cold to engine compartment heat.

Pressure differential resistance protects against environmental changes. Aircraft systems experience rapid pressure variations during ascent and descent. Vacuum chambers maintain consistent internal conditions despite external changes.

Material composition directly impacts longevity and reliability. Stainless steel 316L offers excellent corrosion resistance. Aluminium provides lightweight strength for aerospace applications.

Electrical performance specifications include current and voltage ratings. Some series handle up to 60A continuous current. High-voltage versions withstand 50kV for specialised power applications.

Performance Metric	Typical Range	Testing Method	Critical Applications
Leak Rate	1×10⁻⁷ to 1×10⁻⁹ mbar·l/s	Helium Mass Spectrometry	Vacuum Systems, Aerospace
Temperature Range	-115°C to 200°C	Thermal Cycling	Military, Industrial
Current Rating	5A to 60A	Continuous Load Testing	Power Systems, Motors
Voltage Rating	250V to 50kV	Dielectric Withstanding	High Voltage Equipment
Mating Cycles	500 to 10,000 cycles	Mechanical Endurance	Test Equipment, Access Points

Contact termination options affect installation and reliability. Solder terminations provide permanent, robust connections. PCB mount versions simplify assembly in electronic systems.

Mating cycle durability indicates mechanical longevity. High-quality products withstand thousands of connection cycles. This reduces maintenance needs in frequently accessed systems.

Industry standards validate performance claims. NASA-STD-8739 governs space applications with rigorous requirements. IEC 60068-2-17 ensures industrial environment suitability.

Testing methods verify actual performance characteristics. Helium leak detection measures gas penetration rates accurately. This testing confirms barrier integrity before deployment.

Application context determines specification priorities. Chemical resistance matters most in industrial processing. Ultra-low leak rates become critical in vacuum applications.

Evaluating these specifications requires understanding operational needs. Matching performance characteristics to environmental challenges ensures success. This approach prevents under-specification and unnecessary over-engineering.

Comparing Hermetic Sealing Technologies

Choosing the right environmental barrier method impacts system longevity and performance. Different technologies offer unique benefits for specific situations.

Epoxy and silicone potting provide basic protection at lower costs. These compounds fill spaces around electrical contacts. They work well for general moisture resistance.

This method suits many commercial and industrial uses. However, potting materials allow some gas passage over time. Temperature limits also restrict their use in extreme conditions.

“Potting offers accessibility but trades off against ultimate environmental protection in critical systems.”

Glass-to-metal bonding represents the traditional reliability standard. This process uses high-temperature furnace operations near 1000°C. It creates permanent, durable barriers with minimal leakage.

These components maintain integrity for decades. They handle wide temperature swings and pressure changes. Military and aerospace applications rely on this proven technology.

Ceramic-to-metal sealing serves the most demanding environments. Brazed layers provide exceptional thermal and mechanical shock resistance. This technology excels in high-voltage and extreme temperature situations.

Each technology suits different operational needs. Potting works for basic moisture protection where cost matters most. Glass sealing balances economy and reliability for many uses.

Ceramic options deliver peak performance regardless of expense. Material compatibility affects choices too. Aluminium cannot withstand standard glass sealing temperatures.

Real-world examples show these technologies in action. Some products typically use glass barrier methods.

Selection depends on balancing multiple factors. Consider environmental challenges and performance requirements. Match the technology to the specific application needs.

Industry Standards and Material Considerations

Manufacturing excellence depends on proven standards and smart material choices. These elements ensure reliability across diverse operating conditions.

Military specifications provide rigorous testing requirements. The MIL-DTL-38999 series covers aerospace applications with four performance levels.

Vacuum chamber applications often use MIL-DTL-26482 standards. This ensures proper performance in low-pressure environments. Threaded couplings follow MIL-DTL-83723 for secure connections.

“Standards create common language between designers, manufacturers, and end-users for critical components.”

Aerospace Standards Committee

NASA maintains strict requirements for space equipment. The NATC threaded coupling standard ensures compatibility. SSQ21635 governs manned spacecraft interfaces.

International standards provide global consistency. IEC 60068-2-17 defines leak testing methods. IEC 61076-2 covers metric sensor types like M8 and M12.

Material selection impacts longevity and performance. Brass offers good general-purpose characteristics. Stainless steel 316L provides excellent corrosion resistance.

Lightweight applications often choose aluminium alloys. Plastics like PBT and PEI serve as insulation materials. Each material brings unique advantages.

Sealing technologies require specific material properties. Glass-to-metal sealing needs thermal expansion matching. Ceramic-to-metal processes require proper metallization.

Industry-specific guidelines address unique challenges. Geophysical applications need saltwater resistance. Offshore equipment must withstand high pressure differentials.

Standards ensure interoperability between different systems. They guarantee safety across various environments. Performance consistency comes from proper certification.

Compliant products demonstrate adherence to these requirements. Selection depends on environmental and regulatory needs. Matching materials to conditions prevents premature failure. Proper standards compliance ensures system reliability.

For deeper technical insights, explore this comprehensive guide to specialised interconnects covering testing methods and industry applications.

Standard Type	Primary Application	Key Requirement	Material Compatibility
MIL-DTL-38999	Aerospace Systems	Environmental Resistance	Stainless Steel, Aluminium
MIL-DTL-26482	Vacuum Equipment	Low Leak Rates	Brass, Stainless Steel
NASA-STD-8739	Space Station Assembly	Zero Fault Tolerance	Specialised Alloys
IEC 60068-2-17	Industrial Testing	Leak Verification	Multiple Materials

Always consider the complete operational environment. Temperature extremes affect material choices. Pressure variations influence sealing requirements.

The right combination ensures years of trouble-free service. This approach protects investments in critical systems. Proper selection prevents costly downtime.

Critical Selection Factors for Your Application

Making the right choice requires careful consideration of multiple technical factors. Your specific operational needs determine which features matter most.

Environmental conditions form the foundation of selection criteria. Temperature extremes can range from arctic cold to engine heat. Pressure changes affect performance in aircraft and underwater systems.

“The environment dictates the solution – never force a standard component into a specialised application.”

Senior Design Engineer

Leak rate requirements vary significantly between applications. General protection needs might accept 1×10⁻⁷ mbar·l/s. Ultra-high vacuum systems demand rates below 1×10⁻⁸ mbar·l/s.

Electrical specifications must match your power needs. Some products handle up to 60A continuous current. High-voltage versions withstand 50kV for specialised equipment.

Material compatibility ensures long-term reliability. Stainless steel resists corrosion in harsh conditions. Aluminium provides lightweight strength for aerospace use.

Selection Factor	Standard Range	Critical Applications	Testing Method
Temperature Range	-115°C to 200°C	Aerospace, Military	Thermal Cycling
Leak Rate	1×10⁻⁷ to 1×10⁻⁹ mbar·l/s	Vacuum Systems, Research	Helium Mass Spectrometry
Current Rating	5A to 60A	Power Systems, Motors	Continuous Load Testing
Voltage Rating	250V to 50kV	High Voltage Equipment	Dielectric Withstanding
Material Options	Stainless Steel, Aluminium, Brass	All Applications	Corrosion Testing

Physical dimensions affect installation and compatibility. Shell sizes range from 9 to 25 in military specifications. Contact counts vary from 2 to 55 positions.

Mounting options include solder, crimp, and PCB styles. Each method offers different installation benefits. Reliability varies between termination types.

Industry standards provide performance assurance. MIL-SPEC certifications validate military applications. NASA standards govern space equipment requirements.

Custom solutions address unique application needs. Modification codes allow specific performance adjustments. Tailored designs solve unusual installation challenges.

Testing validation proves real-world performance. Helium leak detection confirms barrier integrity. Environmental simulation tests endurance.

Prioritize factors based on your application’s criticality. Extreme environments demand premium solutions. Less demanding uses can accept standard options.

Always consult with technical experts during selection. They can recommend optimal configurations. This prevents costly mistakes and ensures reliability.

Making the Right Choice for Your Project

Choosing the right component for your system is a critical decision. It impacts reliability, safety, and long-term performance. Always base your selection on specific application needs and environmental conditions.

Match the technology to your requirements. Epoxy works for basic moisture protection. Glass sealing offers proven reliability for many uses. Ceramic options handle extreme temperatures and pressures.

Prioritize standards compliance like MIL-SPEC or IEC guidelines. These ensure safety and interoperability. Leak rates must suit your environment, from general use to high vacuum.

Consider materials for corrosion resistance or lightweight needs. Evaluate total cost, including maintenance, not just initial price. Collaborate with technical experts for tailored solutions.

Review datasheets, request samples, and conduct testing. This approach ensures optimal performance and protects your investment in critical systems.
